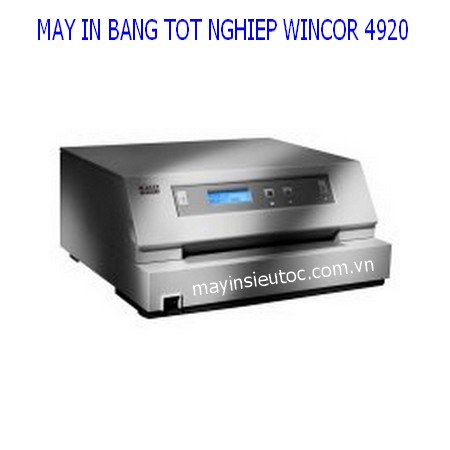

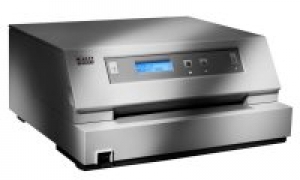

Máy in sổ Wincor 4920 LCD

Thông số kỹ thuật Máy in sổ WinCor Nixdorf HighPrint 4920

TECHOLOGY: 24-pin dot matrix

RESOLUTION : 180 x 360 dpi

FONT : Sans Serif, OCR A – B, ROMAN, Italic Bold, Underline, Sub-/Superscript’, Barcode 39

PRINTING SPEED AT 10 cpi: DQ: 300 cps, LQ: 100 cps

PITCH: 10 - 12 - 15 - 16.6 - 17.1- 20

COPIES: Original + 4 copies

LINE LENGTH: 90 Characters at 10 cpi

LINE SPACING: 6 lines/inch ; n/60 inch ; n/180 inch

RIBBON CARTRIDGE: DQ life: 10 million characters

Document Handling: Width: 70-240 mm, Length: 70-350 mm Completely flat paper feed, Automatic insertion with autoborder

Automatic document-thickness monitoring

PRINT HEAD: 24-pin, noise-optimized arrangementLife: 500 million dots, can be replaced by the customer.

EMULATION: Olivertti PR40/PR50/PR2, Epson ESC/P (ND90, HighPrint 4904/4905), IBM 4722 and Proprinter XL24 (4009, 9068 on request)

PASSBOOK: Longtitudinal and horizontal fold up to 1.7mm (book thickness when open).

INTERFACES: Standard 02 x RS232 serial for 2 user , Centronics, IEEE 1284 parallel and USB 2.0 (full speed)

DIMENSIONS: With 380 mm , Depth 340 mm , Weight 9 kg

NOISE LEVEL: Standby: 0 dBA, In operation: LQ < 55dBA

VOLTAGE: 110-230V/50Hz-60Hz. Standby : 6W, Printing : 54W

Máy in sổ WinCor Nixdorf HighPrint 4920 được sử dụng trong các hệ thống ngân hàng giao dịch in sổ tiết kiệm gửi tiền của khách hàng

Ngoài ra, máy in sổ WinCor 4920 là một máy in kim được sử dụng rộng rãi trong các doanh nghiệp, nhà hàng in hóa đơn giá trị gia tăng, hóa đơn VAT 3 liên, hóa đơn GTGT nhiều liên, biểu mẫu, tem nhãn mã vạch

Máy in WinCor 4920 dùng công nghệ in 24 kim cho văn bản in sắc nét vì vậy rất được các trường học in bằng tốt nghiệp, chứng chỉ, giấy khen, bằng khen ...

Thông số kỹ thuật Máy in sổ WinCor Nixdorf HighPrint 4920

TECHOLOGY: 24-pin dot matrix

RESOLUTION : 180 x 360 dpi

FONT : Sans Serif, OCR A – B, ROMAN, Italic Bold, Underline, Sub-/Superscript’, Barcode 39

PRINTING SPEED AT 10 cpi: DQ: 300 cps, LQ: 100 cps

PITCH: 10 - 12 - 15 - 16.6 - 17.1- 20

COPIES: Original + 4 copies

LINE LENGTH: 90 Characters at 10 cpi

LINE SPACING: 6 lines/inch ; n/60 inch ; n/180 inch

RIBBON CARTRIDGE: DQ life: 10 million characters

Document Handling: Width: 70-240 mm, Length: 70-350 mm Completely flat paper feed, Automatic insertion with autoborder

Automatic document-thickness monitoring

PRINT HEAD: 24-pin, noise-optimized arrangementLife: 500 million dots, can be replaced by the customer.

EMULATION: Olivertti PR40/PR50/PR2, Epson ESC/P (ND90, HighPrint 4904/4905), IBM 4722 and Proprinter XL24 (4009, 9068 on request)

PASSBOOK: Longtitudinal and horizontal fold up to 1.7mm (book thickness when open).

INTERFACES: Standard 02 x RS232 serial for 2 user , Centronics, IEEE 1284 parallel and USB 2.0 (full speed)

DIMENSIONS: With 380 mm , Depth 340 mm , Weight 9 kg

NOISE LEVEL: Standby: 0 dBA, In operation: LQ < 55dBA

VOLTAGE: 110-230V/50Hz-60Hz. Standby : 6W, Printing : 54W
