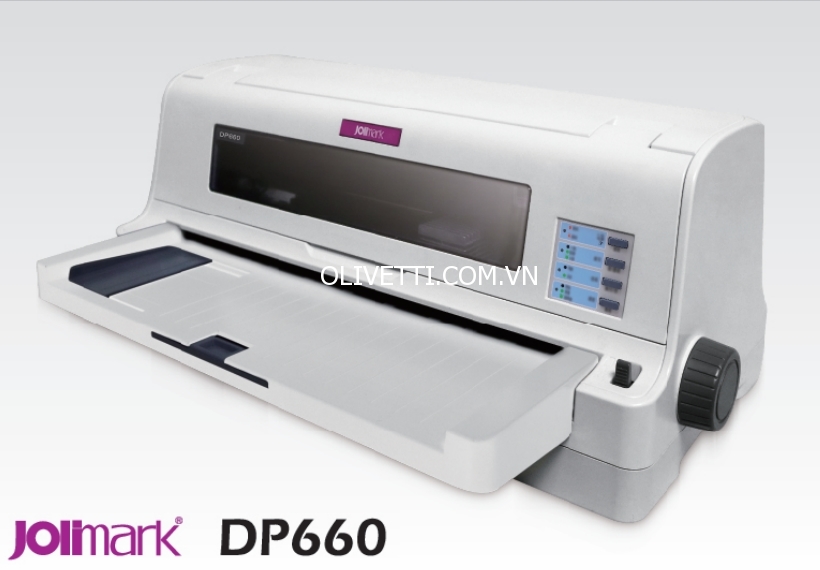

Máy in kim Jolimark DP660, Chuyên dụng in sổ, bằng cấp

Máy in kim Jolimark DP660, Chuyên dụng in sổ, bằng cấp

Jolimark DP660 với thiết kế nhỏ để bàn, tính năng vượt trội hơn hẵn các máy in kim khác trên thị trường, máy in đáy phẳng, đầu kim cực bền có tuổi thọ sử dụng lên đến 10 năm.

Máy in kim Jolimark DP660 24 kim với thiết kế đẹp, nhỏ gọn, hiệu suất in cao, cung cấp những tính năng thiết yếu cho ngân hàng, khách sạn, cửa hàng bán lẻ với khả năng in hóa đơn, nhãn hàng, mã vạch...

Item Description

• Printing method 24 Pins dot matrix impact
• Printing direction Bidirectional logic seeking
• Printing width 110 column(10cpi)/ 279.4 mm
• Printing speed ASCII
• Speed 10 CPI 12 CPI
• Normal speed 150 CPS 180 CPS
• High speed 300 CPS 360 CPS
• Super high speed 400 CPS 480 CPS
• Print head Diameter of wire: 0.20 mm
• Resolution 360 x 360 dpi (Max.)
• Character set ASCII: 15 international character sets
• Code Page U.S.A., MULTI, PORTUGAL, C-FRANCE, NORWAY, E.EUROPE, TURKY853, CYRILLIC, TURKY857, ARABS, RUSSIA, GREEK869, USSRGOST, ISO8859, GRK 437, GRK 851, GRK8859-7, GRK 1253, ARAB NLS, ARAB EXT, WIN LAT1, WIN LAT2, IS0 LTN1, ISO LTN2, TUR8859-9, ISO LTN9, KBL, LATIN 7, PC 1256
• Fonts Draft
• 7 kinds of the LQ fonts: (Roman, Sans Serif, Courier, Prestige, Script, OCR-A, OCR-B)
• Bar code EAN-13, EAN-8, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Code 39, Code 128 B, Code 128 C, Coda bar
• Character pitch ASCII: 10 CPI, 12 CPI, 15 CPI，proportional
• Line space 1/6 inch，1/8 inch，or programmable in 1/360 inch increments
• Paper feeding speed (Max.) 5.0 inch/s (feeding continuously)
• 44ms feeding one line (1/6 inch)
• Emulation EPSON ESC/PK2, OKI 5530SC, IBM 2391
• Interface This printer can be equipped with the following interface types:
• USB interface: 2.0 Full-Speed
• Parallel interface: Centronics (IEEE1284 NIBBLE)
• Ethernet interface (10/100Base-T)
• Bluetooth
• Wi-Fi (802.11b/g/n)
• Input Buffer 256 KB
• Ribbon Model: JMR 140
• Life: 12 million characters (draft mode)
• Noise ＜55 dB (A) (ISO7779 standard)
• Control panel 4 buttons and 4 LED lights
• Paper feed type Cut sheet: Load and eject from front, load from front and eject from rear
• Continuous paper: Load from rear and eject from front
• Paper specification Continuous paper Width: 76 ~ 340 mm
• Cut sheet Width: 55 ~ 355 mm
• Length: 67 ~ 536 mm
• Size: A3, A4, A5；B3, B4, B5
• Lay open thickness of transverse certificate Lay open thickness of transverse passbook/certificate: 1.8 mm
• Lay open size of transverse certificate Length: 75 ~ 300 mm
• Width: 90 ~ 297 mm
• Max. paper thickness 2.0 mm
• Copy 1 + 6P (0.065 mm/page)
• Compress printing Support graphics and character compression printing, compression ratios are 50%, 66%, 75%, 100%, auto compress printing, select this function in the menu.
• Aptitude application Paper edge detection, skew detection, black mark detection, paper thickness auto-adaption,
• Full slot paper feeding Special function Pin Break Compensation, Pin Rotation Replacement, Automatic Emulation Match, Online Parameter Setting
• Physical dimensions 491(Width)× 246(Length)× 210(Height)mm
• Weight About 6.1 kg
• Environmental conditions Working environment: 5 ~ 40℃
• Working humidity: 25 ~ 80%RH (No condensation)
• Storage environment: -40 ~ 55℃
• Storage humidity: ≤93%RH (40℃，No condensation)
• Power supply Input voltage: 220 V(AC)
• Frequency: 50Hz
• Power consumption ① Operating: 110 W; ② Standby: Approximately 3.4 W
