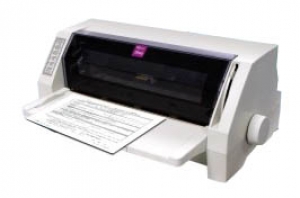

Máy in hóa đơn giá trị gia tăng Jolimark DP650

Print type

24-pin impact dot matrix

Print direction

Bi-directional with logic seeking

Print width

106 Columns (10CPI)/269.24mm

Print speed

Print head

Diameter of wire:0.22mm

Life:500 million strokes/wire

Resolution

360X360 dpi (Maximum)

Character sets

ASC II 17 international character sets

U.S.A, France, Germany, U.K, Denmark1,

Sweden, Italy, Spain1, Japan, Norway,

Denmark2, Spain2, Latin Am, Korea, Legal,

Netherlands, Turkey

Chinese GB18030

Fonts

ASCII Draft, Roman, Sans Serif, Courier, Prestige, Script, OCR-A, OCR-B, Orator Chinese GB18030

Bar code

EAN-13, EAN-8, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Code 39, Code 128 B, Code 128 C, NW-7

Character pitch

ASC II 10cpi, 12cpi, 15cpi, proportional
Chinese 6.7cpi, 7.5cpi

Line space

1/6 inch, 1/8 inch, programmable in 1/360 inch increments

Emulation

EPSON ESC/PK2, OKI 5530SC

Interface

Standard Bi-directional parallel interface (IEEE-1284 nibble mode supported),

USB 2.0 (Full- Speed) interface

Options RS-232C serial interface  or 10/100 Base-T Ethernet interface

Input Buffer

132KB

Ribbon

Model JMR119

Life > 8 million characters (draft mode)

Noise

 < 55dB(A)(ISO7779 standard)

Paper feed type

Cut sheet  front in ,front out
Continuous paper rear in ,front out

Paper specification

Cut sheet

Width:70～340mm,Length:56～536mm

Thickness:0.06～0.1 mm

Weight:45～150 g/m²

Continuous paper  Width:65～335mm

Thickness:0.06～0.1 mm

Weight:Single sheet:45～150 g/m²

Multiple part:Every page30～40 g/m²

Max paper thickness

0.85mm

Copy

Original+6 copies

Automatic function

Options Automatic paper edge detection;

Paper skew detection;

Black mark detection

Compress set

Compressed printing for character and graphics

Special function

Standar:

Automatic Pin Break Compensation;

Automatic Pin Alternation;

Automatic Emulation Match;

Online Parameter Setting;

Options: full slot position paper loading and printing

Dimension

470mm(W) X 250mm(D) X 207mm(H)

Weight

Approx. 7.8Kg

Environmental conditions

Operating  Temperature:5-40℃

Humidity:40%RH-90%RH(No condensation)

Storage  Temperature:-40-55℃

Humidity≤93%RH(40℃ No condensation)

Power

requirements Rated voltage:176-242V;

Rated frequency range 50-60Hz

MTBF

≥15,000 hours(IEC 605.7 standard)

Safety marks

GB 4943 / IEC 60950 / VL 60950
