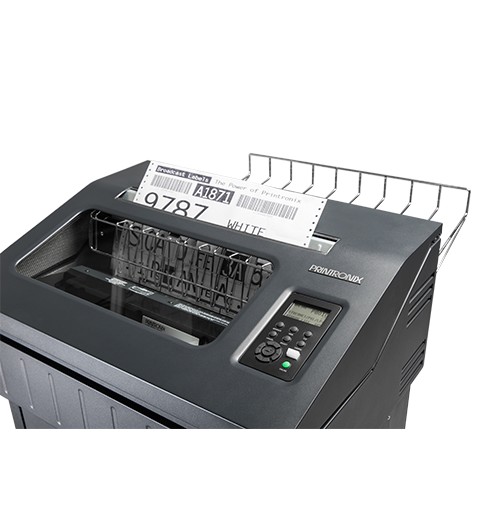

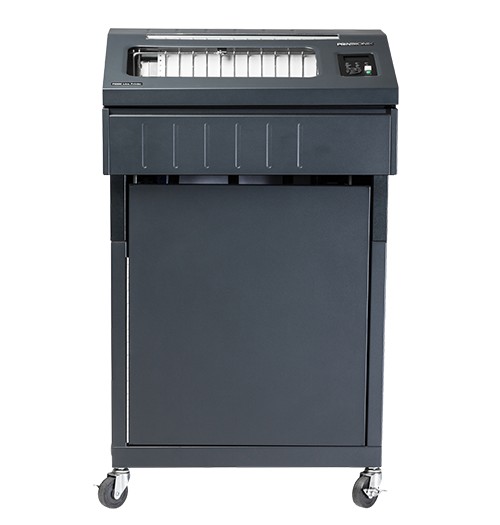

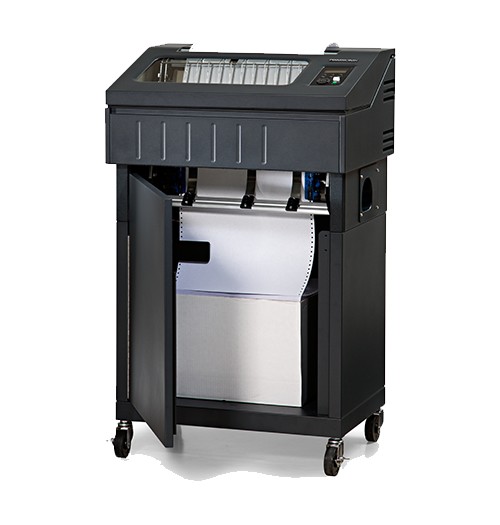

Máy in hóa đơn GTGT 3 liên Printronix P8010ZT

Connectivity/Interfaces

• Standard: USB 2.0 and Serial RS-232
• Optional:
  • Ethernet – 10/100 Base T
  • Parallel – IEEE-1284 Centronics

Character Pitch (characters per inch)

• 10, 12, 13.3, 15, 16.7, 17.1, 20

Line Spacing (lines per inch)

• 6, 8, 10.3, n/72, n/216

Graphics Resolution

• 180 dpi Horizontal, 144 dpi Vertical (max)

Dot Size

• 16.7 mil (.42mm)

Emulations

• Standard: LP+ (Printronix P-Series, P-Series XQ, Serial Matrix, IBM ProPrinter III XL, Epson FX-1050)
• Optional: ANSI, IPDS, PCL 2, DEC LG, TN5250/TN3270, Graphics emulation PGL and VGL

Character Sets

• 99 plus character sets including ECMA Latin 1, DEC Multinational, IBM Code Page 437 and 850, OCR A, OCR B, UTF8 encoded Unicode

Character Styles

• Bold, italic, double wide, double high, overstrike, underline, subscript and superscript

Fonts

• NLQ Serif, NLQ Sans Serif, Data Processing, High Speed, OCR A, OCR B

Barcodes

• 30 resident symbologies, including Code 39, EAN 8/13, UPC A/E, Intelligent Mail, Postnet, Royal Mail, Interleaved 2 of 5, PDF 417, Data Matrix

Printer Software

• Printronix PrintNet Enterprise remote management software, SAP device support

Printer Drivers

• Microsoft Window XP/Vista/2003/2008/7, Linux

Power Voltage

• AC input range 100-240 VAC, 50/60 HZ

Power Consumption (typical-maximum)

• P8010 / P8210 300 watts Max 320 watts

Power Consumption (Power-Saver Mode)

• Less than 5 watts

Operating Temperature

• Environmental Operating Temperature 50° to 104° F, 10° to 40° C

Paper Type

• Continuous, fan folded, edge-perforation

Print Width

• 13.6″ (345mm)

Media Copies

• Up to 6 part; up to 4 part for Zero Tear models

Media LENGTH

• 3” (76mm) to 12” (305mm)

Media THICKNESS MULTI-PART

• 0.025” (0.64mm) max

Media Width

• 3″ (76mm) to 17″ (432mm)
• For Zero Tear models:
  • 7.5” (191mm) to 12” (305mm) for up to 4 part carbon and 6 part carbonless
  • 7.5” (191mm) to 16” (406mm) for up to 3 part carbon and 4 part carbonless

Media Weight Single Ply

• 15 lb. Bond to 100 lb. Tag (56 to 163 gm/M2)
• For Zero Tear models:
  • 18 lb. Bond to 100 lb. Tag (67.7 to 163 gm/M2) for forms up to 12” (305mm) in width
  • 20 lb. Bond to 100 lb. Tag (75.2 to 163gm/M2) for forms up to 16” (406mm) in width

MTBF

• 10,000 hours at 25% duty cycle and 25% page density

Consumable/Ribbons

• Standard Life Cartridge Ribbon: 17,000 pages
• Extended Life Cartridge Ribbon: 30,000 pages (Only available for 1000-2000 lpm models)

Page yield based on ISO LSA Page, 8.5″ x 11″ letter-size, approximately 5% coverage

Height:

• 42.04” (1067.8 mm) with basket
• 42.04” (1067.8 mm) without basket

Width:

• 25.8″ (655.3 mm) with basket
• 25.8″ (655.3 mm) without basket

Depth:

• 31.9″ (810.2 mm) with basket
• 19.1” (485.1 mm) without basket

Printer Weight:

• 145 lbs (66 Kg) with basket
• N/A – without basket

Shipping Printer Weight:

• 190 lbs (86 Kg) with basket
• N/A – without basket

Acoustic Noise (dBA) per ISO 7779:

• P8010ZT: 70
